Technical Specification
Engine | Travel System | ||||||||||
Model | YANMAR 4TNV88 | Travel motors | KYB, Japan; | ||||||||
Type | Direct injection, water cooled, natural intake | Support roller quantities | 2×5 | ||||||||
Carrier roller quantities | 2×1 | ||||||||||
No. of cylinder | 4 | Travel shoes | 2X35 | ||||||||
Bore and stroke | 88X90(mm) | Travel speed | 2.7/4.4(km/h) | ||||||||
Displacement | 2.19L | Drawbar pulling force | 35kN | ||||||||
Power output | 25.2kw/2200rpm | Gradeability | 58%(300) | ||||||||
Max. torque | 142N.m/1200rpm | Track shoes thickness | 6mm | ||||||||
Hydraulic System | Cab & Electrical System | ||||||||||
Pump | KYB, Japan | Cab | All-weather, sound-suppressed Cab and equipped with a heavy, insulated Floor Mat， Front Window can be opened and slided; adjustable Seat; LED display, Automatic monitoring, display | ||||||||
Type | axial piston pump+ gear pump | ||||||||||
Max. discharge flow | 128 (L/min) | ||||||||||
Max. discharge pressure | |||||||||||
Boom, arm and bucket | 24.5 MPa | Voltage | 12V | ||||||||
Travel circuit | 15.7 MPa | Batteries | 1x12V | ||||||||
Swing circuit | 15.7 MPa | Battery capacity | 80Ah | ||||||||
Control circuit | 3.9 MPa | Boom, Arm ＆ Bucket | |||||||||
Pilot control pump | Gear type | Boom cylinder | Φ90xΦ50xS552-L915 | ||||||||
Main control valves | KYB, Japan | Arm cylinder | Φ85xΦ50xS580-L920 | ||||||||
Oil cooler | Air cooled type | Bucket cylinder | Φ70xΦ45xS443-L745 | ||||||||
Swing System | Refilling Capacity & lubrication | ||||||||||
Swing motor | KYB, Japan | Fuel tank | 82 L | ||||||||
Swing motor type | Axial-piston motor | Cooling system | 12 L | ||||||||
Brake | Hydraulic oil released | Engine oil | 6L | ||||||||
Parking brake | Hydraulic disc brake | Hydraulic oil tank | 59L Tank Oil Level | ||||||||
Swing speed | 12 r/min | 85L Hydraulic System | |||||||||
Bucket | |||||||||||
Type | Backhoe bucket | ||||||||||
Bucket capacity | 0.17m3 (SAE) | ||||||||||
Bucket Capacity scope | 0.069-0.24m3 | ||||||||||
Number of bucket teeth | 4 | ||||||||||
Bucket width | 640 mm | ||||||||||

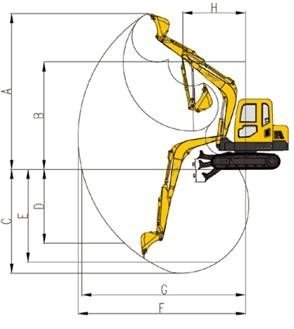

Working Ranges | | ||||||||||
Boom length | 2650mm | ||||||||||
A | Max. digging height | 5030mm | |||||||||
B | Max. dumping height | 3390mm | |||||||||
C | Max. digging depth | 3390mm | |||||||||
D | Max. vertical digging depth | 2545mm | |||||||||
F | Max. digging distance | 5523mm | |||||||||
G | Max. digging reach at ground level | 5413mm | |||||||||
H | Min swing radius of work equipment | 2406mm | |||||||||
Digging Force (ISO6015) | |||||||||||
Arm length | 1450mm | ||||||||||
A | Bucket digging force | 23.7 KN | |||||||||
B | Arm digging force | 21.6 KN | |||||||||

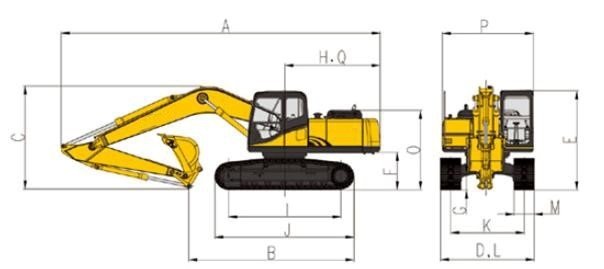

Overall Dimensions Unit: mm | |||||||||||
A | Overall length | 5385mm | I | Track grounding length | 1710mm | ||||||
B | Ground contact length | 3512mm | J | Track length | 2190mm | ||||||
C | Overall height(to top of boom) | 1783mm | K | Track gauge | 1400mm | ||||||
D | Overall width | 1750mm | L | Track width | 1750mm | ||||||
E | Overall height(to top of cab) | 2455mm | M | Track Shoe width | 350mm | ||||||
F | Counter weight ground clearance | 600mm | O | Counter weight height | 850mm | ||||||
G | Min Ground clearance | 350mm | P | Revolving frame width | 1600mm | ||||||
H | Tail swing radius | 1561mm | Q | Distance from swing center to tail | 1561mm | ||||||
This picture just for reference, please according to real machine | |||||||||||
Operating Weight and Ground Pressure | |||||||||||
Operating weight includes basic machine; | |||||||||||
Operating weight | 4200 Kg | ||||||||||
Ground pressure | 36 KPa | ||||||||||
Price: 23,600 €/ set ( including cabin ) FOB QINGDAO PORT （Price include one standard bucket）
1X20GP container can load : 1 set
Lead time: 20 days after down payment.
Optional Attachments ：
No. | Attachments Name | Photos | Price（€） |
1 | Hydraulic Quick Hitch |
| 630 |

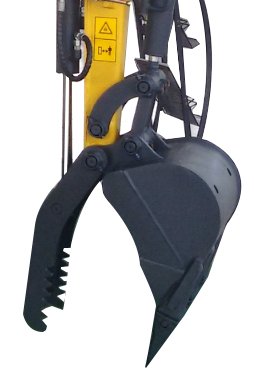

2 | Thumb | | 588 |
3 | hydraulic hammer | | 1438 |
4 | Ripper | | 458 |
7 | Auger (300mm drill rod) | | 2000 |

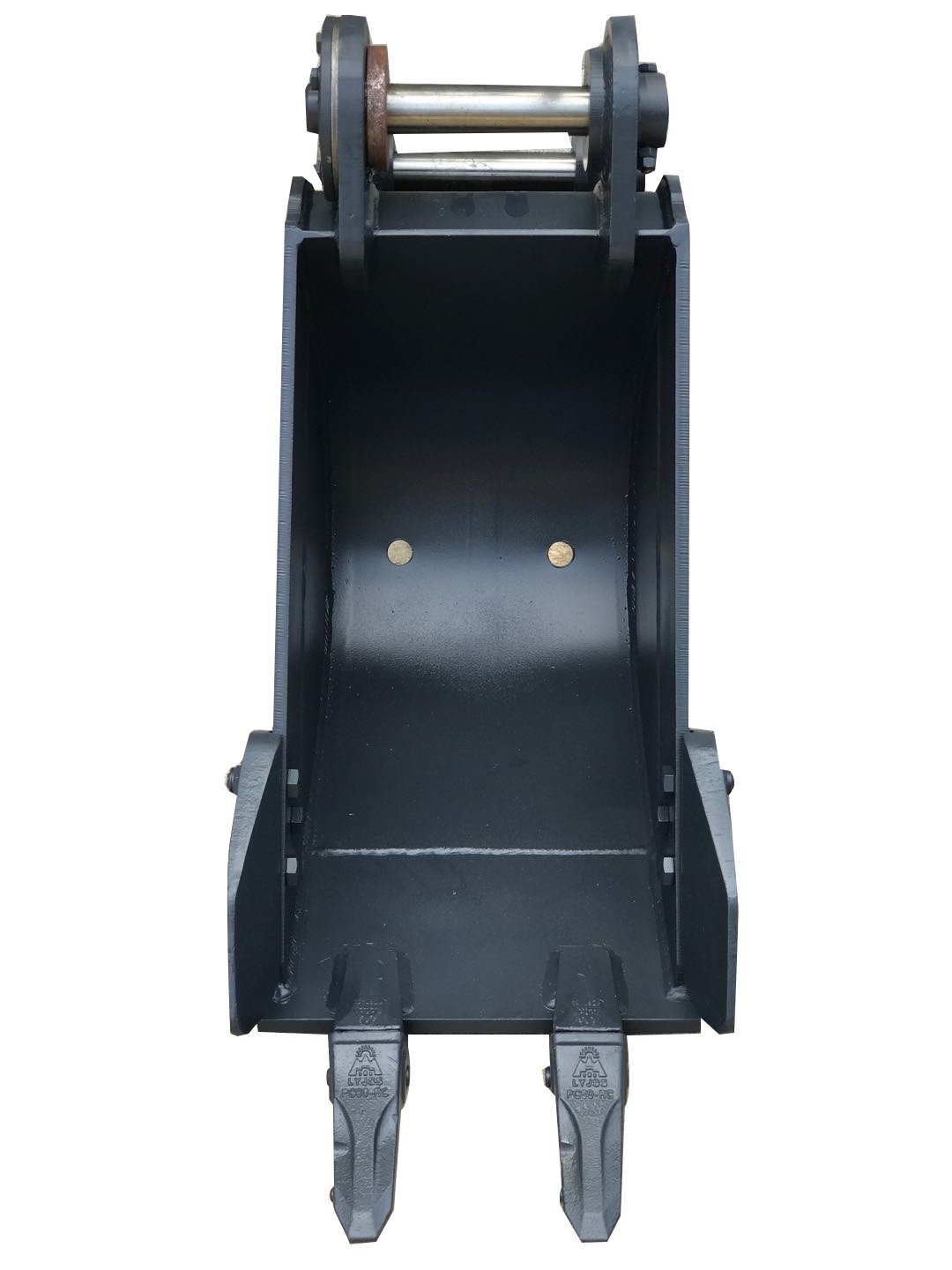

9 | 350mm bucket（2 teeth） | | 420 |
10 | 1000mm Rake | | 430 |
12 | 1000mm bucket（no teeth） | 500 | |

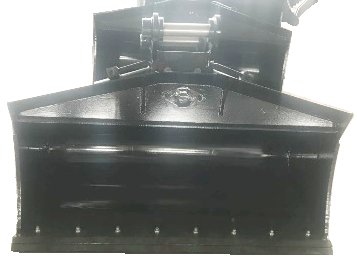

13 | 1000mm tilt bucket（no teeth） | | 1019 |
14 | Grab Bucket | | 1020 |
