A Standard Configuration and Feasure
1) Hard Mn alloy steel Q345B was used for 80% chassis.
2) 3.6ton Max loading capacity
3) Weichai deutz engine.92KW
4)Automatic transmission control
5)Four wheel drive, Oscillating gear axles
6)Four wheel hydraulic spread-shoe brake 7Famous brand Camel battery with Big AH
8) 17.5-25 tires
9) warm Cabin with luxury seat, Adjustable steering wheel, Heater Detailed pictures for 3.6ton wheel loader
B.Advantage
1.Rops approved:the cabin space is 30% larger than normal.
2.DEUTZ engine :powerful ,low emission ,low fuel consumption,low noise ,moneysaving.
3.Eaglelion wheel reductor, Oscillating rear alxe for best stability.

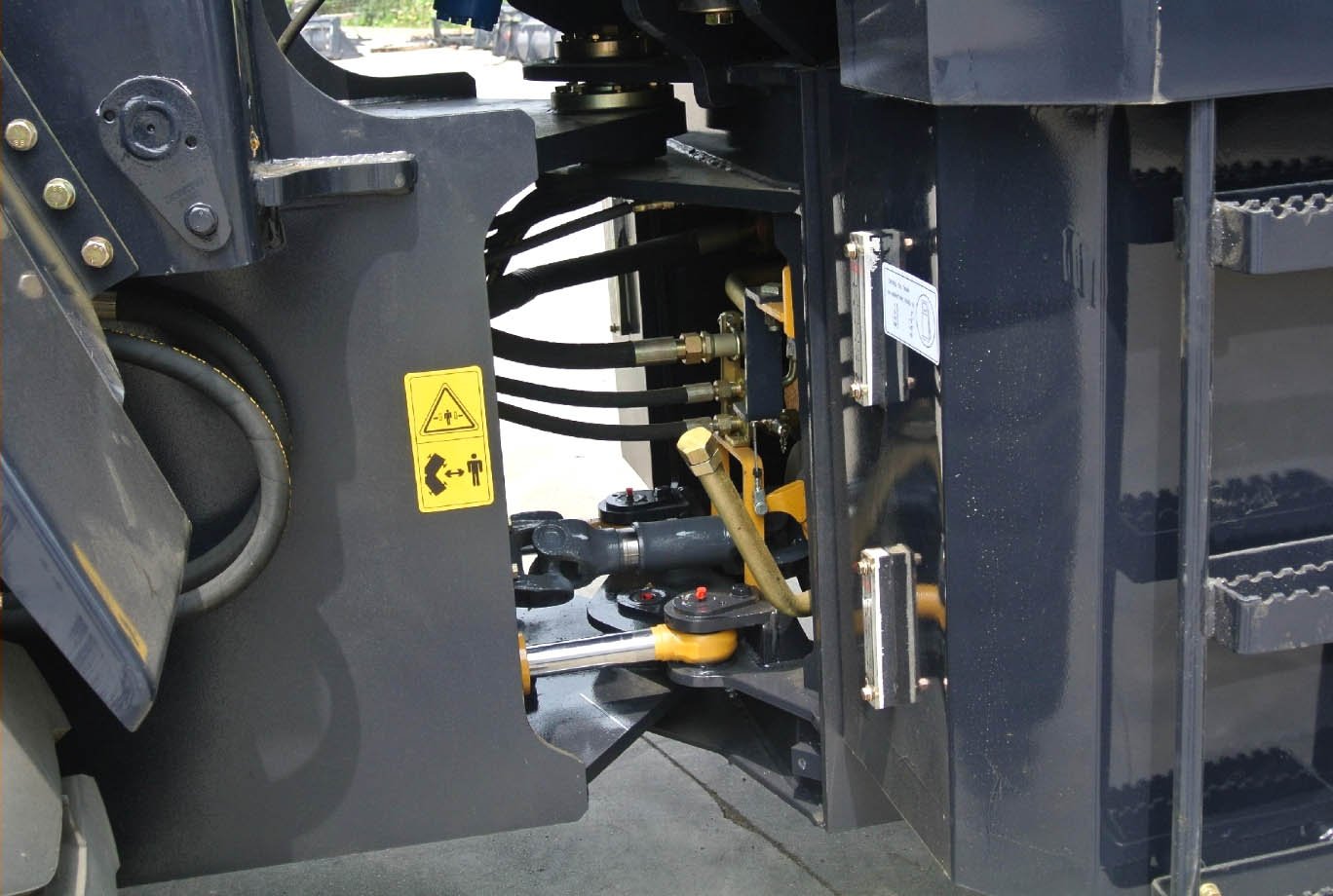

4.Extremely strong articulation joint
5.low boom pivot for perfect view
6.sliding elements free of wear.
7.very strong carriage fast and safe hydraulic coupling of tools . 8.versatile due to big range of tools and optional equipment. 9.cabin can roll, so it is convenient to repair.
C. Specification
Model | 3.6 ton capacity wheellaoder | |
Model | DEUTZ engine | |
Rated output(kw) | 92KW | |
Engin | Type | In line,vertical,water cooled,four-stroke |
e | ||
Number of cylinders | 6 | |
Method of starting | Electric | |
Lifting capacity(kg) | 3600kg | |
Bucket seize | 1.7M3 | |
Dump | height(mm) | 3300 |
Lift TIME(mm) | 3S | |
Operate weight (kg) | 9900kg | |
TIRE | 17.5-25 | |
Maximum speed | 30km/hr | |
Drive Mean | Four Wheel drive | |
Maximum gradeability | 30 | |
Torque converter model | YJ320B | |
dimension | 7120*2440*3137mm | |
Standard machine | ||
Quotation
Price: 22,360 €, FOB Qingdao Port
you can choose the color as you like.
5 year warranty about the frame , 1 year warranty about all other spare parts
