The telescopic loader is used for agriculture and farm .
And it can used in construction like crane.
A Standard Configuration and Feasure
1) Hard Mn alloy steel Q345B was used for 80% chassis.
2) 2500kg Max loading capacity
3) Chinese famous brand yunnei 76KW
4)Automatic transmission control
5)Four wheel drive, Oscillating gear axles
6)Four wheel hydraulic spread-shoe brake
7Famous brand Camel battery with Big AH
8) 16/70/24 agricultural tire
9) warm Cabin with luxury seat, Adjustable steering wheel, Heater

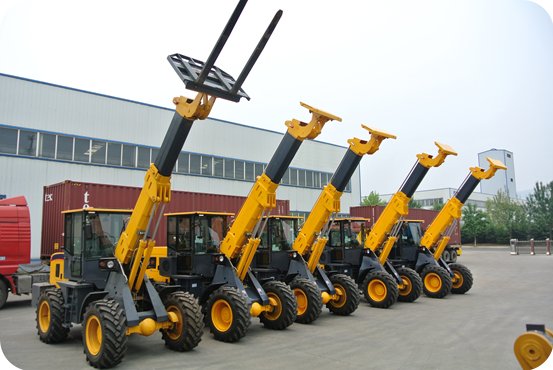

Detailed pictures for TELESCOPIC LOADER
B.Advantage
1.Rops approved:the cabin space is 30% larger than normal.
2.yunnei engine :powerful ,low emission ,low fuel consumption,low noise ,moneysaving.
3.wheel reductor,Oscillating rear alxe for best stability.
4.Extremely strong articulation joint
5.low boom pivot for perfect view
6.sliding elements free of wear.
7.hydraulic hose well protected in telescopic boom
8.very strong carriage fast and safe hydraulic coupling of tools .
SPECIFICATIONS :
Model | 2.5 ton telescopic wheeled loader | |
Engine | Model | Yunnei(YN38GBZ) |
Rated output(kw) | 76KW | |
Type | In line,vertical,water cooled,four-stroke | |
Number of cylinders | 4 | |
Method of starting | Electric | |
Lifting capacity(kg) | 2500 | |
Lift height(mm) | 4500 | |
Lift TIME(mm) | 4.7S | |
Machine weight (kg) | 7000 | |
Bucket capacity | 1.2 cubic bucket | |
Axle-base(mm) | 2325mm | |
TIRE | 16/70/24 | |
Maximum breakout force | 58kw | |
Maximum speed | 40km/hr | |
Drive Mean | Four Wheel drive | |
Maximum gradeability | 30 | |
Torque converter model | YJ280B | |
Transmission system | Automatic | |
Turn radius | 6000mm | |
Brake system | Air press oil disc brake | |
System pressure | 16hp | |
Hydraulic slow | 63ml/r | |
Hydraulic line | Three hydraulic line | |
Dimension | 7000*2400*2800mm | |

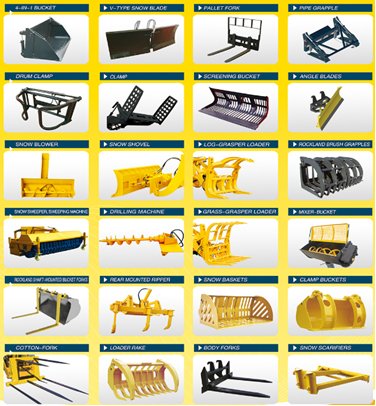

Attachments ：
